Oil In Water Sensor – Fluorescence-Based, RS485 Modbus, Auto-Clean Brush, For Wastewater & Environmental Monitoring
1. Product Introduction

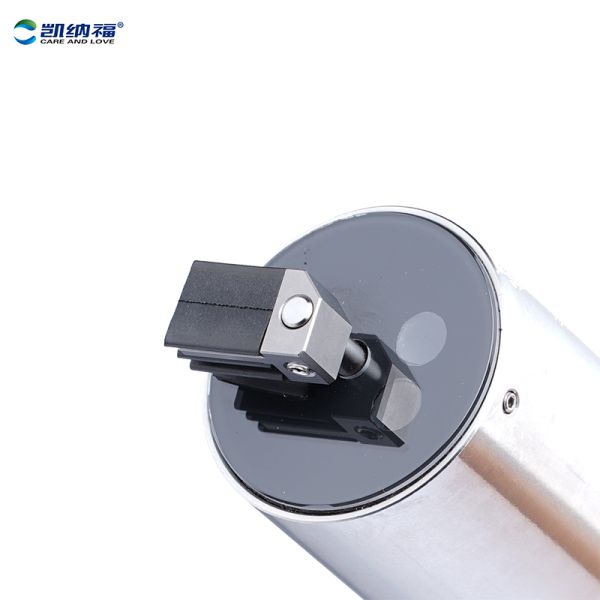

The KNF-1012 intelligent electrode for oil in water adopts RS485 communication interface and standard Modbus protocol, with its own cleaning brush. Based on coherent fluorescence detection technology, it has good selectivity and strong anti-interference ability. Data analysis software is randomly included, featuring functions such as calibration, recording, analysis, and diagnosis. It can be applied to the monitoring of water body environments such as river sections, lakes and reservoirs, and coastal areas, as well as in sewage treatment, wastewater discharge, process control, petrochemicals, port shipping, and oil leakage monitoring, etc.
2. Usage environment
Working voltage: 12/24V Temperature: (0-60) ℃ Pressure: (0-3) bar;
3. Technical indicators
|
Working principle
|
Fluorescence method
|
|
Excitation wavelength
|
360nm(Customizable 254nm)
|
|
Detection wavelength
|
460nm
|
|
Measurement range
|
(0-150)mg/L
|
|
Resolution rate
|
0.01mg/L
|
|
Measurement accuracy
|
士5% or 0.2mg/L
|
|
Repeatability
|
<2% or 0.1mg/L
|
|
Drift
|
士3%
|
|
Detection limit
|
0.3mg/L
|
|
Linear error
|
士5%
|
|
Response time
|
<10s
|
|
Communication interface
|
RS485,Standard Modbus protocol
|
|

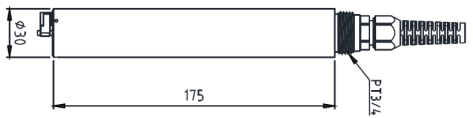

Size specification
|
D30mm,L175mm,Cable 3 meters (customizable),460g
|
|
Working environment
|
(0-60)℃ ,(0-3)bar
|
|
Working voltage
|
12V/24V DC,0.5W
|

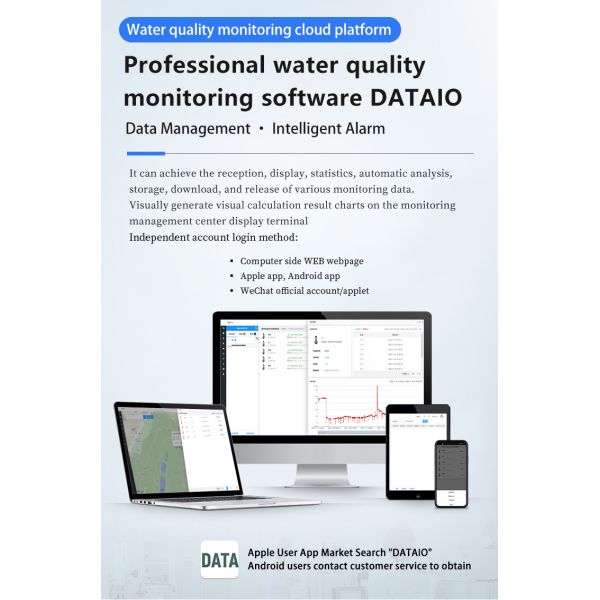

4. Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)
All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.
▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪Wechat Official Account/Mini Program
